Summary
Imagine this: Rain runs down the hill behind your house. It gets stuck in the narrow space beside your neighbor’s home. Water from the gutters adds to it. Soon, the ground beside and behind the house is muddy, and water may find its way into the crawl space or basement.
However, a French drain gives that water a way out. It collects water around the back and sides of the house. Buried pipes then carry it downhill toward the front of the property. Gutter water and AC drips have their own connections into the drainage system. At Ray Lawns, we plan the whole route, including where the water leaves.
Follow the water from your house to the outlet
Picture a house on a slope, with a higher hill behind it and the street below it. Another house sits close beside it. Water can collect behind the home or become trapped between the two buildings.
For this common setup, the French drain follows a U-shaped route. It starts at one front corner, runs along the side and across the back, then continues down the opposite side to the other front corner. The trench catches water before it keeps moving toward the house. Its grade directs collected water toward the front ends, where solid pipes carry it downhill to the outlet.
That is one common layout, not a layout every yard needs. We check your elevations and the available discharge point before deciding where to dig.
Rain from the roof stays in solid pipe
Rain lands on the roof, enters the gutters, and flows down the downspouts. We connect those downspouts to solid underground pipe so the water can travel toward the front of the property without soaking back into the soil beside the foundation.
The gutter pipes can run alongside the French drain within the same drainage route. For a larger house, two separate downspouts may be needed. They carry roof water separately from the perforated collection pipe and can join properly sized solid discharge lines downstream.
Water in the soil enters the French drain
Some water moves downhill below the surface. When it reaches the side of the French drain trench, it seeps into the spaces between the gravel.
As water collects in the trench, it enters the small openings in the perforated pipe. A filter sock surrounds that pipe to help keep fine material out.
The pipe carries that water toward the front corners of the house. There, the collection sections transition to solid discharge pipe, which carries the water away without releasing it back into the yard along the route.
Water running across the lawn needs an entry point
During heavy rain, water also runs over the ground from the hill behind the house. Where the yard slopes into an open gravel collection area, that runoff enters the French drain trench and joins the water being carried away.
The surface finish matters. A drain covered with soil and sod collects water differently than exposed drainage stone does. Where runoff needs faster surface collection, we plan the grading and appropriate inlets so that water enters the system rather than flowing over it or pooling beside it.
AC water flows into a grate
An AC condensate line can keep a small patch of ground wet even when it has not rained. The AC line empties above a grate fitted to a four-inch pipe and elbow. Water falls through the grate into the buried line, then travels toward the same planned discharge area. The opening stays accessible, while the pipe carries the water away from the equipment and the house.
Where the water goes after it leaves the house
On many homes in our area, the street is lower than the house. That gives the drainage system a downhill route toward the front of the property. We confirm that slope and choose the outlet before installation begins.
Direct discharge to the road where permitted
When the property and local requirements allow it, we prefer to carry the water all the way to the road. Ray Lawns can cut through the sidewalk or curb as needed, install the discharge pipe, and replace the affected concrete. The water then exits at the road rather than surfacing in the grass beside the sidewalk.
We use this approach only where city and county ordinances allow it and the necessary road permit can be obtained. Some jurisdictions may prohibit road discharge, including because of erosion concerns. Approval is part of the decision of whether this outlet is an option for your home.
A pop-up emitter when road discharge is not an option
When direct road discharge is prohibited or unsuitable, a pop-up emitter can release the water into an appropriate low area of the lawn near the road. Water arriving through the buried solid pipe lifts the cap and flows out onto the ground.
Because the water comes to the surface there, the surrounding grass can become wet during discharge. We choose the location and check how water will move beyond it so the outlet does not simply create another persistent puddle near the sidewalk.
A suitable drainage ditch may be another outlet on a property with the right grade and an acceptable discharge location. The route depends on the yard; water cannot drain uphill simply because an outlet is convenient.
What goes inside a properly built French drain
The gravel-filled trench is the collection area. The pipe inside gives collected water to reach the outlet. Both need enough space and a suitable slope to work.
Room for the gravel and pipe
The French drain trenches Ray Lawns commonly installs are approximately 18 inches wide and 20 inches deep. Those are typical dimensions, not a fixed specification for every home. Depth, width, and pipe sizing depend on the water being collected and the route to the outlet.
Clean gravel leaves open spaces where water can move and collect temporarily. A narrow cut that barely fits a pipe does not provide the same collection area as a properly sized gravel trench.
Filter protection around the collection pipe
Filter fabric separates the surrounding soil from the drainage stone. The perforated pipe sits within that stone, with a filter sock around the pipe where specified. These materials help limit soil entering the collection area while allowing water to pass through.

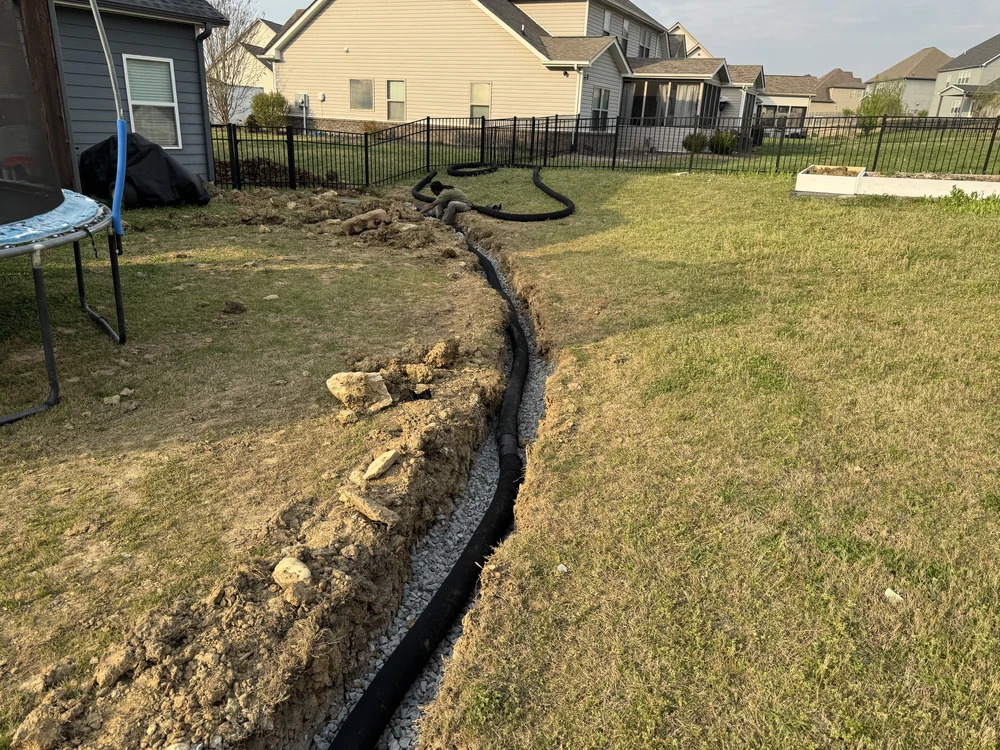

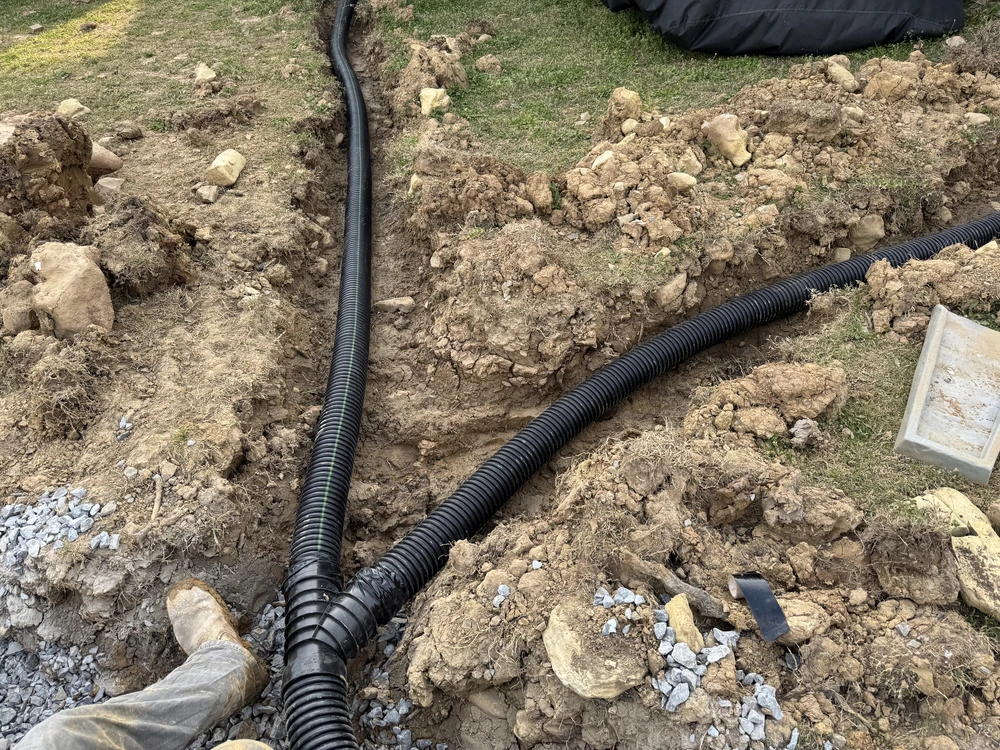

The construction photo below shows the pipe, gravel, and fabric before the trench is closed. The cross-section in the opening diagram shows how water reaches the pipe from above and from the side.
Choosing the right downspout connection
Roof water needs a clear route into its solid pipe. The best connection depends partly on how much debris enters the gutters and on how the system will be maintained.
A direct connection may suit a roof in good condition with little nearby tree debris. Where leaves or roofing material are a concern, a grated catch basin can provide an accessible collection point. A splash guard helps guide the downspout flow over the grate. The basin and grate still need inspection and cleaning; they do not make the system maintenance-free.
Channel drains collect water crossing concrete
Water rushing down a driveway may reach the garage before a lawn drain can intercept it. A channel drain places a long grate across that runoff path and directs the water into a buried solid pipe.
Ray Lawns installs channel drains in driveways and parking pads where surface water collection is needed. The grate must sit at the correct height, with surrounding concrete guiding water into it. Its outlet pipe connects to a suitable discharge route, whether that leads toward the front of the property or to another approved low point.
How Ray Lawns plans and installs the system
Start with the wet areas and the outlet
We ask where water appears, how long it stays, and whether it happens only after rain or while the AC is running. We check the hillsides and the space between homes, then follow the downspouts and other sources to the problem area.
Next, we confirm where the collected water can go. Access, utilities, existing landscaping, and any concrete crossings help determine the final route. We explain the proposed connections so you can follow the water before work begins.
Check the buried work before restoring the yard
Once the route is excavated, we install the collection materials and connect the solid discharge piping. Downspouts, AC collection points, and any channel drains are connected according to the plan. We check the grade and connections and test the water’s route before covering the work.
We can walk you through the components while they are still visible. Afterward, disturbed areas are graded and restored with soil, seed, or sod, as required by the project. Concrete sections are replaced where included in the installation. Grates and outlets remain accessible.
When a wet yard needs a closer look
A muddy strip between houses, recurring standing water behind the home, or soil that remains soft beside an AC unit can indicate different water sources. Runoff entering the garage needs a different collection point from water moving through the lawn.
If the same problem returns after each storm, waiting for the grass to dry does not change the water’s route. Ray Lawns evaluates those patterns and recommends the components the property needs. A French drain may be part of the solution, along with downspout piping, surface drains, or grading.
Understand the drainage plan before you hire
Most of this work will be underground when the job is finished. You should know where water enters, how the pipes connect, and where it will discharge before the trench is covered.
Ray Lawns has served the Chattanooga area since 2002 and is a Certified NDS Professional Drainage Contractor. We use project photos and plain explanations to help homeowners understand the proposed system. We want you to be able to look at your yard and see why the route makes sense.
What homeowners say about our drainage work
The reviews below describe Ray Lawns drainage projects and the explanations homeowners received along the way.
Gene Lamos
After moving to Ringgold, I quickly realized that I had not been told about a drainage issue which turned the backyard into a giant mud pit every time it rained. Four different
companies examined the problem and proposed a plan to alleviate it. Brian from Ray Lawns proposed what I thought was by far the best solution, with the lowest quote to do the job. In addition to being who I felt was the most qualified to install a French drain, he provided references for similar projects Ray Lawns has done, which was a big help in decision-making on who to use.
The project included installing the French Drain, connecting gutter downspouts to a separate drain pipe, installing sod in areas damaged during installation, and grading and seeding the rest of the backyard. They also cleaned a drainage ditch at the back boundary of the lot, which was clogged with debris and preventing water from draining away. During the project, I was very impressed with JJ and Carl and their work ethic. They worked extremely quickly and diligently at all times. It was a true team effort on their part.
After all the work was completed, I purchased a half-pallet of sod and installed it. Ray Lawns came back and added more seed, an extra pallet, and a quarter of a pallet of sod at no extra cost. My yard will look better than it has in a long time after all the seeded areas have grown.
I am extremely happy with the service provided by Ray Lawns and the expert job they did.
Kevin Denver
Installed a drainage system on all 4 downspouts and sodded and seeded the area. They met all expectations. Brian and his crew were great. I was very pleased.
Bryan Gibson
I had Ray Lawns install a French drain system around my house and have performed regular lawn maintenance (mowing, edging, trimming). Brian and his team are always good to work with and will ensure any job is done correctly and meets your satisfaction.
S S
It's difficult these days to find contractors or lawn people who genuinely care and do the job right. They have gone above and beyond to fix my water problem; they stuck to their word and guarantee their work. Thanks
Sean Carlton
Brian at Ray Lawns provided outstanding service! He was empathetic in listening to my concerns and guided me through multiple options to help me resolve my drainage issues. He thoroughly explained each step of the process and remained flexible when scheduling conflicts arose with other contractors on site. He and his team showed incredible attention to detail in each phase of my French drain installation and ensured the site was thoroughly covered with sod before departing. Brian remained responsive to any
questions I had, even after the installation was completed. I couldn’t be more pleased with this service.
Mark Wells
Ray Lawns was recommended by a neighbor, so I called on a Sunday afternoon to schedule a consultation. I needed help with my backyard because shade and drainage issues made it difficult to keep the grass alive. I didn’t expect anyone to pick up on a weekend, but Brian did. He was so knowledgeable, helpful, and generous with his time and insights. Do you need help with your yard here in Chattanooga? Give Ray Lawns a call!
J H
We had the plain common builders grass. It was green, but we wanted a bit more for our new home in Chattanooga. Now we have a casual, rustic fire pit, a stamped-concrete patio, brand-new sod, proper drainage, and a driveway extension. During the project, Brian and his crew from Ray Lawns had to deal with Mother Nature turning our yard into a muddy mess. They took the occasional setbacks in stride and offered alternate solutions. Everything turned out great. We love our new landscaping!
Roderick Carrasco
We called several companies to see what they could do about a flooding issue in our backyard. Every time it rained a lot, it would create a huge puddle in our backyard. Then we called Brian, and he came out to give us an estimate. He was very honest and provided probably the best resolution for our situation. It didn’t fix it completely, and I don't think our situation was fully fixable. The work that Brian and his team did was fantastic, and his guys worked hard and did an amazing job. They were very good at keeping everything as clean and picked up as they could. I would highly recommend Ray for your landscape needs, plus he was very reasonably priced!! Thanks, Brian.
Alison Lemmons
I had an excellent experience with Ray Lawns. They got me a free estimate promptly, and once I was ready to move forward, they got me on the schedule immediately. And they showed up when they said they would and finished my French drain on time! Brian personally tested the drain and each gutter output before he left. I was also very happy with how well they maintained my yard during the work and how it looked when they finished. I can’t recommend them enough!
Autumn O'Hearon
We had an incredible experience with Brian Ray from Ray Lawn’s. We called to look into getting a French drain installed to keep water away from our home. Before Brian came out, we had another company look at our issue, and it felt like every visit introduced a new problem, even after paying them to follow the recommended plan. They made it seem like our house was practically falling apart!
Bryan was a complete breath of fresh air. From the moment we started talking, he was knowledgeable, patient, and above all, completely honest. He took the time to explain everything so we could actually understand what was going on. In the end, he was honest with us—even when it meant he wasn't going to make a sale off us today.
That level of integrity is so hard to find. We are so grateful for his time and help, and Ray Lawn will 100% be our first call whenever we need work done in the future!
Kasey Lichtenberg
I've used Ray Lawn for years on multiple projects (French drains, landscape fabric/mulch beds, weed management, etc.). Brian is always a joy to work with, giving you multiple options, and his crew does a great job. They all take great pride in their work. I'd recommend them to anyone.
Doug Hitchcox
So far, the French drain is working perfectly, and you can't even tell they were there. What I loved most was that these guys did exactly what they said they would do. If they give you a certain date that they plan to start, THEY SHOW UP! This has been rare in my experience. The team that worked on the lawn was super hardworking and such great guys. I would hire this team again in a heartbeat!
Let us walk you through your drainage options
If water keeps collecting beside or behind your house, we can help you understand where it is coming from and where it can go. Ray Lawns will explain the proposed collection points and outlet so you can see how the system fits your property. Contact Ray Lawns to schedule your drainage evaluation.
French drain questions
How wide and deep should a French drain be?
Our commonly installed trenches are approximately 18 inches wide and 20 inches deep, with dimensions adjusted to the property. The trench needs room for drainage gravel and the collection pipe. Its route and slope must suit the outlet.
Does gutter water flow through the sock pipe?
Roof water travels through separate solid piping. The sock-wrapped perforated pipe collects water entering the French drain trench. Those flows may meet in appropriately sized solid discharge piping farther downstream, where the water is being carried away from the collection area.
Can you include the AC drip line?
Yes. The condensate line can empty above a grate connected to a four-inch pipe and elbow. That collected water then follows the planned drainage route toward the outlet instead of soaking the same spot beside the house.
Will the drain release water onto the road?
Only where the property layout is suitable, local ordinances allow it, and the necessary road permit can be obtained. Otherwise, we consider a pop-up emitter or another suitable discharge point. The outlet is decided during planning.
What is the difference between a French drain and a surface drain?
A French drain collects water along a gravel-filled trench. A catch basin collects water at a single surface opening. A channel drain collects runoff across a hard surface, such as a driveway. A property may need more than one of these components.
Can a French drain help keep water out of a crawl space or basement?
A properly planned exterior drain can intercept water moving toward the house and reduce moisture around it. Water already entering a crawl space or basement may also require evaluation of the foundation or other drainage conditions. We assess the source before recommending a solution.
Where does Ray Lawns install French drains?
We serve Chattanooga, Ooltewah, Collegedale, Apison, East Brainerd, Harrison, Hixson, and surrounding Hamilton County communities. Each drainage plan follows the property’s water sources, elevations, and available outlet.
